薄壁球軸承KD140XP0 KD160XP0

洛陽利瑞軸承有限公司主營薄壁軸承,等截面薄壁軸承,工業機器人軸承,推力滾子軸承,精密軸承等,可根據客戶特殊要求定制非標薄壁軸承,多種規格截面尺寸.歡迎來電咨詢

咨詢熱線：0379-64907522 留言給我們

產品詳細

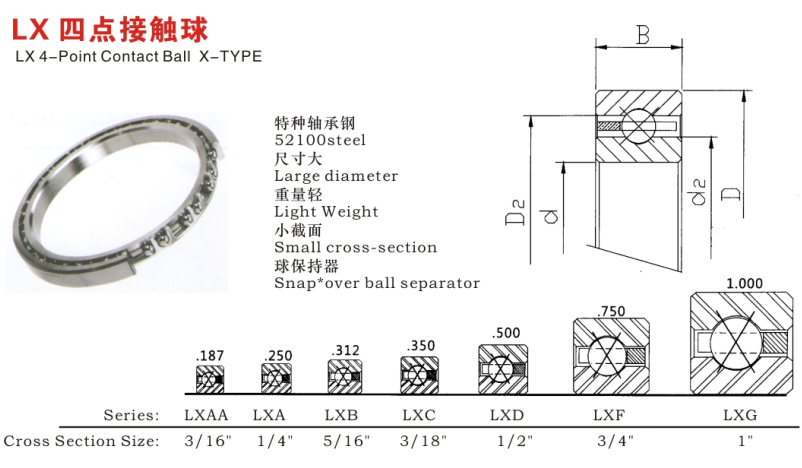

X系列四點接觸球軸承與A.C型軸承的區別在于溝道的形狀，薄壁四點接觸軸承，可以承受瞬間符合和回轉軸向負荷，雖然也可以使用在輕負荷的條件下，但在承受單純的徑向負荷方面是不能代替徑向接觸球軸承或者角接觸球軸承。

型號	基本尺寸			球數	重量	額定負載						極限轉速	對應型號
	基本尺寸					徑向		推力		傾覆
	d	D	B			靜	動	靜	動	靜	動
	mm	mm	mm		Kg	Co(N)	Cr(N)	N	N	Nm	Nm	(RPM)	KAYDON	SILVERTHIN
LRAA10	25.4	34.925	4.763	21	0.014	1290	1330	2140	3910	10	25	16840	KAA10CL0	SAA10CL0
LRAA15	38.1	47.625	4.763	29	0.018	1780	1560	2890	4540	25	40	11850	KAA15CL0	SAA15CL0
LXA020	50.8	63.5	6.35	27	0.045	3020	2490	4800	7300	55	80	8890	KA020XPO	SA020XPO
LXB020	50.8	66.675	7.938	23	0.073	4140	3560	6490	10320	80	120	8650	KB020XPO	SB020XPO
LXA025	63.5	76.2	6.35	33	0.059	3690	2710	5830	7870	80	110	7270	KA025XPO	SA025XPO
LXB025	63.5	79.375	7.938	28	0.091	5070	3830	7780	11170	110	160	7110	KB025XPO	SB025XPO
LXA030	76.2	88.9	6.35	39	0.068	4400	2890	6810	8360	110	140	6150	KA030XPO	SA030XPO
LXB030	76.2	92.075	7.938	33	0.109	5960	4090	9120	11920	150	200	6040	KB030XPO	SB030XPO
LXA035	88.9	101.6	6.35	45	0.082	5070	3070	7780	8850	150	170	5330	KA035XPO	SA035XPO
LXB035	88.9	104.775	7.938	38	0.122	6850	4310	10410	12500	200	240	5250	KB035XPO	SB035XPO
LXA040	101.6	114.3	6.35	51	0.086	5740	3200	8810	9250	190	200	4710	KA040XPO	SA040XPO
LXB040	101.6	117.475	7.938	43	0.136	7780	4540	11700	13120	260	290	4640	KB040XPO	SB040XPO
LXC040	101.6	120.65	9.525	35	0.204	9340	5740	13830	16640	310	370	4570	KC040XPO	SC040XPO
LXD040	101.6	127	12.7	27	0.354	13700	10010	22020	29000	500	660	4440	KD040XPO	SD040XPO
LXF040	101.6	139.7	19.05	19	0.862	23840	17530	35500	50800	860	1230	4210	KF040XPO	SF040XPO
LXG040	101.6	152.4	25.4	15	1.633	36520	29800	57650	86470	1460	2200	4000	KG040XPO	SG040XPO
LXA042	107.95	120.65	6.35	54	0.091	6090	3250	9300	9390	210	210	4440	KA042XPO	SA042XPO
LXB042	107.95	123.825	7.938	45	0.141	8140	4580	12190	13340	280	310	4380	KB042XPO	SB042XPO
LXC042	107.95	127	9.525	37	0.213	9880	5870	14550	17040	340	400	4320	KC042XPO	SC042XPO
LXD042	107.95	133.35	12.7	28	0.376	14190	10100	22730	29270	550	710	4210	KD042XPO	SD042XPO
LXF042	107.95	146.05	19.05	20	0.907	25090	18100	37370	52530	950	1330	4000	KF042XPO	SF042XPO
LXG042	107.95	158.75	25.4	15	1.724	36520	29800	57650	86470	1540	2310	3810	KG042XPO	SG042XPO
LXA045	114.3	127	6.35	57	0.1	6410	3340	9790	9650	240	230	4210	KA045XPO	SA045XPO
LXB045	114.3	130.175	7.938	48	0.15	8670	4720	12990	13700	320	330	4160	KB045XPO	SB045XPO
LXC045	114.3	133.35	9.525	39	0.218	10410	6010	15300	17390	380	430	4100	KC045XPO	SC045XPO
LXD045	114.3	139.7	12.7	30	0.399	15210	10450	24290	30340	620	770	4000	KD045XPO	SD045XPO
LXF045	114.3	152.4	19.05	21	0.953	26380	18730	39230	54270	1050	1450	3810	KF045XPO	SF045XPO
LXG045	114.3	165.1	25.4	16	1.814	38970	31140	61470	90250	1720	2520	3640	KG045XPO	SG045XPO
LXA047	120.65	133.35	6.35	60	0.104	6760	3380	10280	9880	260	250	4000	KA047XPO	SA047XPO
LXB047	120.65	136.525	7.938	50	0.154	9030	4760	13480	13830	350	350	3950	KB047XPO	SB047XPO
LXC047	120.65	139.7	9.525	41	0.227	10940	6090	16060	17660	420	460	3900	KC047XPO	SC047XPO
LXD047	120.65	146.05	12.7	31	0.426	15700	10500	25000	30430	670	810	3810	KD047XPO	SD047XPO
LXF047	120.65	158.75	19.05	22	0.998	27620	19170	41010	55560	1150	1550	3640	KF047XPO	SF047XPO
LXG047	120.65	171.45	25.4	17	1.86	41370	32430	65300	93990	1910	2750	3480	KG047XPO	SG047XPO
LXA050	127	139.7	6.35	63	0.109	7070	3430	10760	9960	290	270	3810	KA050XPO	SA050XPO
LXB050	127	142.875	7.938	53	0.172	9560	4890	14280	14190	390	380	3760	KB050XPO	SB050XPO
LXC050	127	146.05	9.525	43	0.263	11520	6180	16810	17970	460	490	3720	KC050XPO	SC050XPO
LXD050	127	152.4	12.7	33	0.454	16730	10810	26560	31320	740	870	3640	KD050XPO	SD050XPO
LXF050	127	165.1	19.05	23	1.043	28870	19480	42700	56540	1250	1650	3480	KF050XPO	SF050XPO
LXG050	127	177.8	25.4	18	1.95	43810	33670	69170	97640	2110	2980	3330	KG050XPO	SG050XPO
LXA055	139.7	152.4	6.35	69	0.113	7780	3560	11790	10320	340	300	3480	KA055XPO	SA055XPO
LXB055	139.7	155.575	7.938	58	0.186	10500	5030	15570	14590	460	430	3440	KB055XPO	SB055XPO
LXC055	139.7	158.75	9.525	47	0.268	12590	6410	18280	18550	550	550	3400	KC055XPO	SC055XPO
LXD055	139.7	165.1	12.7	36	0.481	18240	11170	28820	32340	880	990	3330	KD055XPO	SD055XPO
LXF055	139.7	177.8	19.05	25	1.134	31360	20190	46130	58580	1470	1860	3200	KF055XPO	SF055XPO
LXG055	139.7	190.5	25.4	19	2.132	46260	34920	73000	101200	2410	3340	3080	KG055XPO	SG055XPO
LXA060	152.4	165.1	6.35	75	0.127	8450	3690	12770	10760	410	340	3200	KA060XPO	SA060XPO
LXB060	152.4	168.275	7.938	63	0.2	11390	5200	16860	15030	540	480	3170	KB060XPO	SB060XPO
LXC060	152.4	171.45	9.525	51	0.286	13660	6630	19790	19220	640	620	3140	KC060XPO	SC060XPO
LXD060	152.4	177.8	12.7	39	0.526	19790	11480	31090	33360	1030	1100	3080	KD060XPO	SD060XPO
LXF060	152.4	190.5	19.05	27	1.225	33900	20730	49510	60180	1700	2060	2960	KF060XPO	SF060XPO
LXG060	152.4	203.2	25.4	21	2.313	51110	37320	80690	108180	2870	3850	2860	KG060XPO	SG060XPO
LXA065	165.1	177.8	6.35	81	0.136	9120	3780	13790	10900	470	370	2960	KA065XPO	SA065XPO
LXB065	165.1	180.975	7.938	68	0.213	12280	5340	18150	15440	630	530	2940	KB065XPO	SB065XPO
LXC065	165.1	184.15	9.525	55	0.308	14720	6810	21310	19750	740	690	2910	KC065XPO	SC065XPO
LXD065	165.1	190.5	12.7	42	0.553	21310	11790	33360	34160	1190	1220	2860	KD065XPO	SD065XPO
LXF065	165.1	203.2	19.05	29	1.315	36390	21310	52930	61830	1950	2280	2760	KF065XPO	SF065XPO
LXG065	165.1	215.9	25.4	22	2.449	53560	37900	84120	109870	3200	4190	2670	KG065XPO	SG065XPO
LXA070	177.8	190.5	6.35	87	0.141	9790	3870	14770	11210	540	410	2760	KA070XPO	SA070XPO
LXB070	177.8	193.675	7.938	73	0.227	13210	5520	19480	16010	720	590	2740	KB070XPO	SB070XPO
LXC070	177.8	196.85	9.525	59	0.331	15790	6980	22770	20240	850	760	2710	KC070XPO	SC070XPO
LXD070	177.8	203.2	12.7	45	0.594	22820	12140	35670	35190	1360	1340	2670	KD070XPO	SD070XPO
LXF070	177.8	215.9	19.05	31	1.451	38920	21890	56360	63520	2220	2500	2580	KF070XPO	SF070XPO
LXG070	177.8	228.6	25.4	24	2.631	58410	39500	91280	114540	3710	4660	2500	KG070XPO	SG070XPO
LXA075	190.5	203.2	6.35	93	0.154	10450	3960	15750	11480	620	450	2580	KA075XPO	SA075XPO
LXB075	190.5	206.375	7.938	78	0.24	14100	5690	20770	16500	820	660	2560	KB075XPO	SB075XPO
LXC075	190.5	209.55	9.525	63	0.354	16860	7120	24240	20640	970	820	2540	KC075XPO	SC075XPO
LXD075	190.5	215.9	12.7	48	0.64	24330	12460	37940	36120	1540	1470	2500	KD075XPO	SD075XPO
LXF075	190.5	228.6	19.05	33	1.542	41410	22420	59780	64990	2500	2720	2420	KF075XPO	SF075XPO
LXG075	190.5	241.3	25.4	25	2.767	47330	39860	94610	115610	4090	4990	2350	KG075XPO	SG075XPO
LXA080	203.2	215.9	6.35	99	0.172	11120	4050	16770	11740	700	490	2420	KA080XPO	SA080XPO
LXB080	203.2	219.075	7.938	83	0.259	14990	5690	22060	16550	930	700	2410	KB080XPO	SB080XPO
LXC080	203.2	222.25	9.525	67	0.381	17930	7340	25760	21220	1100	900	2390	KC080XPO	SC080XPO
LXD080	203.2	228.6	12.7	51	0.694	25840	12720	40210	36880	1740	1590	2350	KD080XPO	SD080XPO
LXF080	203.2	241.3	19.05	35	1.588	43950	22860	63160	66280	2810	2950	2290	KF080XPO	SF080XPO
LXG080	203.2	254	25.4	27	2.948	65700	41370	101820	119920	4650	5480	2220	KG080XPO	SG080XPO
LXA090	228.6	241.3	6.35	111	0.2	12500	4180	18730	12140	880	570	2160	KA090XPO	SA090XPO
LXB090	228.6	244.475	7.938	93	0.299	16810	5920	24640	17170	1170	810	2150	KB090XPO	SB090XPO
LXC090	228.6	247.65	9.525	75	0.426	20060	7700	28780	22330	1370	1060	2130	KC090XPO	SC090XPO
LXD090	228.6	254	12.7	57	0.78	28910	13210	44750	38340	2160	1850	2110	KD090XPO	SD090XPO
LXF090	228.6	266.7	19.05	39	1.769	48930	23840	70020	69170	3470	3430	2050	KF090XPO	SF090XPO
LXG090	228.6	279.4	25.4	30	3.266	73040	43240	112410	125440	5710	6370	2000	KG090XPO	SG090XPO
LXA100	254	266.7	6.35	123	0.227	13830	4400	20730	12720	1080	660	1950	KA100XPO	SA100XPO
LXB100	254	269.875	7.938	103	0.331	18640	6230	27270	18020	1430	940	1940	KB100XPO	SB100XPO
LXC100	254	273.05	9.525	83	0.481	22200	7920	31760	23000	1670	1210	1930	KC100XPO	SC100XPO
LXD100	254	279.4	12.7	63	0.853	31940	13660	49290	39590	2630	2110	1900	KD100XPO	SD100XPO
LXF100	254	292.1	19.05	43	1.95	53960	24690	76780	71440	4190	3900	1860	KF100XPO	SF100XPO
LXG100	254	304.8	25.4	33	3.583	80330	44660	122860	129490	6860	7240	1820	KG100XPO	SG100XPO
LXA110	279.4	292.1	6.35	135	0.236	15170	4580	22730	13260	1300	760	1780	KA110XPO	SA110XPO
LXB110	279.4	295.275	7.938	113	0.34	20420	6510	29800	18370	1710	1060	1770	KB110XPO	SB110XPO
LXC110	279.4	298.45	9.525	91	0.526	24330	8360	34700	23490	2010	1360	1760	KC110XPO	SC110XPO
LXD110	279.4	304.8	12.7	69	0.934	35010	14150	53820	41010	3140	2400	1740	KD110XPO	SD110XPO
LXF110	279.4	317.5	19.05	47	2.177	58980	25950	83580	73880	4990	4410	1700	KF110XPO	SF110XPO
LXG110	279.4	330.2	25.4	36	3.901	87630	46080	133360	133710	8130	8150	1670	KG110XPO	SG110XPO
LXA120	304.8	317.5	6.35	147	0.254	16550	4800	24730	13700	1540	850	1630	KA120XPO	SA120XPO
LXB120	304.8	320.675	7.938	123	0.376	22240	6850	32430	18990	2030	1190	1620	KB120XPO	SB120XPO
LXC120	304.8	323.85	9.525	99	0.567	26470	8780	37720	24330	2370	1530	1620	KC120XPO	SC120XPO
LXD120	304.8	330.2	12.7	75	1.021	38030	14770	58450	42840	3710	2720	1600	KD120XPO	SD120XPO
LRF120	304.8	342.9	19.05	51	2.359	64010	27160	90480	76510	5860	4950	1570	KF120XPO	SE120XPO
LXG120	304.8	355.6	25.4	39	4.218	94930	47550	143900	137850	9500	9100	1540	KG120XPO	SG120XPO
LXB140	355.6	371.475	7.938	143	0.476	25840	7470	37590	20110	2730	1460	1400	KB140XPO	SB140XPO
LXC140	355.6	374.65	9.525	115	0.689	30740	9580	43680	25800	3190	1880	1390	KC140XPO	SC140XPO
LXD140	355.6	381	12.7	87	1.238	44130	15390	67520	44620	4970	3290	1380	KD140XPO	SD140XPO
LXF140	355.6	393.7	19.05	59	2.722	74060	29450	104130	80470	7800	6030	1360	KF140XPO	SF140XPO
LXG140	355.6	406.4	25.4	45	4.899	109520	50180	164940	145500	12570	11090	1330	KG140XPO	SG140XPO
LXB160	406.4	422.275	7.938	163	0.544	29450	8060	42790	21350	3540	1770	1230	KB160XPO	SB160XPO
LXC160	406.4	425.45	9.525	131	0.785	35050	10320	49640	26910	4130	2240	1220	KC160XPO	SC160XPO
LXD160	406.4	431.8	12.7	99	1.406	50220	16410	76640	46710	6420	3920	1210	KD160XPO	SD160XPO
LXF160	406.4	444.5	19.05	67	3.221	84070	31600	117790	84520	10020	7190	1190	KF160XPO	SF160XPO
LXG160	406.4	457.2	25.4	51	5.579	124150	52580	185980	152440	16060	13170	1180	KG160XPO	SG160XPO
LXB180	457.2	473.075	7.938	183	0.612	33090	8610	47950	22460	4460	2090	1090	KB180XPO	SB180XPO
LXC180	457.2	476.25	9.525	147	0.88	39320	11020	55650	28420	5190	2650	1090	KC180XPO	SC180XPO
LXD180	457.2	482.6	12.7	111	1.579	56270	17490	85670	48350	8050	4540	1080	KD180XPO	SD180XPO
LXF180	457.2	495.3	19.05	75	3.583	94120	33620	131490	88880	12520	8460	1070	KF180XPO	SF180XPO
LXG180	457.2	508	25.4	57	6.214	138740	55010	207020	158620	19980	15310	1050	KG180XPO	SG180XPO
LXB200	508	523.875	7.938	203	0.68	36700	9130	53110	23400	5480	2410	980	KB200XPO	SB200XPO
LXC200	508	527.05	9.525	163	0.98	43590	11680	61610	29670	6380	3070	980	KC200XPO	SC200XPO
LXD200	508	533.4	12.7	123	1.746	62360	18520	94840	50620	9870	5270	980	KD200XPO	SD200XPO
LXF200	508	546.1	19.05	83	4.037	104180	35520	145100	91500	15300	9650	960	KF200XPO	SF200XPO
LXG200	508	558.8	25.4	63	7.167	153330	58020	227930	163610	24320	17460	950	KG200XPO	SG200XPO
LXC250	635	654.05	9.525	203	1.22	54270	13180	76510	32470	9860	4190	790	KC250XPO	SC250XPO
LXD250	635	660.4	12.7	153	2.173	77580	20860	117480	54540	15220	7060	780	KD250XPO	SD250XPO
LXF250	635	673.1	19.05	103	4.944	129270	39870	179130	97460	23430	12750	780	KF250XPO	SF250XPO
LXG250	635	685.8	25.4	78	8.845	189850	64900	280730	178370	37080	23560	770	KG250XPO	SG250XPO
LXC300	762	781.05	9.525	243	1.456	64990	14500	91460	35590	14110	5490	660	KC300XPO	SC300XPO
LXD300	762	787.4	12.7	183	2.599	92790	22920	140300	59780	21740	9270	660	KD300XPO	SD300XPO
LXF300	762	800.1	19.05	123	5.897	154350	43720	213340	105070	33330	16410	650	KF300XPO	SF300XPO
LXG300	762	812.8	25.4	93	10.569	226370	71010	333350	189090	52500	29780	650	KG300XPO	SG300XPO
LXF350	889	927.1	19.05	143	6.849	179490	47160	247370	111070	44930	20170	560	KF350XPO	SF350XPO
LXG350	889	939.8	25.4	108	12.292	262890	76490	385570	196260	70510	35890	560	KG350XPO	SG350XPO
LXF400	1016	1054.1	19.05	163	7.802	204570	50270	281570	118010	58290	24430	490	KF400XPO	SF400XPO
LXG400	1016	1066.8	25.4	123	13.971	299410	81430	438550	209420	91340	43620	490	KG400XPO	SG400XPO
